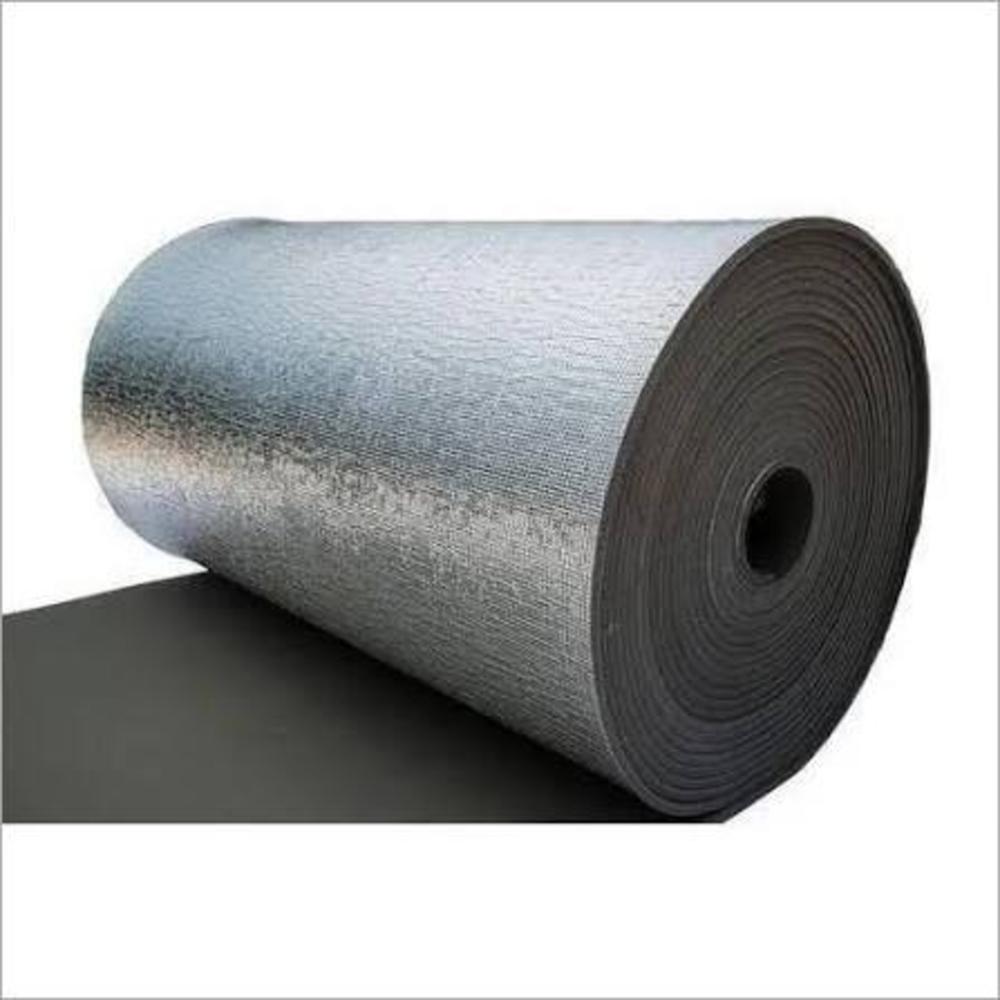

XLPE ROLLS

Name: XLPE ROLLS
Brand: TEXCEL
Price: 15.0 INR
Availability: InStock

Price 15.0 INR/ Square Meter

Get a Price/Quote

MOQ : 1000 Square Meters

XLPE ROLLS Specification

Installation Guideline
Easy to cut, shape, and install; can be fixed using adhesives or mechanical fasteners

Size
Standard and custom sizes available

Coating Type
Optional lamination with aluminum foil or film

Density
0.08 Gram per cubic centimeter(g/cm3)

Thermal Conductivity
0.035-0.040 W/mK

Feature
Lightweight, Non-toxic, Water resistant, Shock absorbent, Flexible, Flame retardant

Layer
Single Layer or Multi-layer

Surface Treatment
Plain, One side laminated (foil or film), custom finishes

Product Type
Roll

Material
Cross Linked Polyethylene (XLPE)

Rated Voltage
Up to 1100 V (can vary as per requirement)

Tensile Strength
> 0.15 MPa

Width
1000 mm to 1600 mm

Thickness
3 mm to 40 mm

Application
Thermal insulation, Sound insulation, Packaging, HVAC duct insulation, Underlay for flooring, Automotive, Sports padding

Breakdown Voltage
Above 25 kV/mm

Heat Conductivity
0.035-0.040 W/mK

Color
White, Black, Grey, Blue (Custom colors available)

Max Withstanding Temperature
Up to 105C

Flame Retardancy
Available as per UL94 standards

Water Absorption
< 0.02 g/cm3

Odor
Odorless

Moisture Resistance
Excellent

Elongation at Break
> 120%

Chemical Resistance
Excellent against acids, alkalis, and most chemicals

Hardness
15-30 Shore C

Form
Rolls, Sheets, Custom cut shapes

Toxicity
Non-toxic / CFC-free

Acoustic Insulation
Good sound absorption properties

UV Resistance
Available on request

Compression Strength
45-65 kPa @ 25% compression

Eco-Friendly
Yes, recyclable and ROHS compliant

About XLPE ROLLS

XLPE (Cross-Linked Polyethylene) rolls are premium, closed-cell, flexible foam materials widely used for thermal/acoustic insulation, HVAC ducting, and protective packaging. Known for their excellent water resistance, shock absorption, and high dimensional stability, they serve as highly durable heat and sound barriers.

Advanced Thermal and Sound Insulation

XLPE rolls are engineered to deliver superior thermal performance, with heat conductivity ranging from 0.035 to 0.040 W/mK. Their closed-cell structure ensures minimal water absorption and effective sound dampening, making them ideal for insulation in residential, commercial, and industrial environments. This multi-purpose utility, paired with excellent moisture and chemical resistance, enhances long-term reliability and comfort.

Flexible and Customizable Solutions

Whether you require standard or custom dimensions, single or multilayer construction, XLPE rolls come in a variety of thicknesses (3-40 mm), widths (1000-1600 mm), and finishes, including optional laminations with foil or film. Their flexibility and ease of cutting allow straightforward installation for an array of applications, including packaging solutions, automotive cushioning, under-flooring, and sports safety pads.

FAQ's of XLPE ROLLS:

Q: How are XLPE rolls installed for insulation purposes?

A: XLPE rolls are easy to install and can be cut and shaped to fit specific areas. They can be fixed using adhesives or mechanical fasteners, depending on the application and substrate. Optional lamination with foil or film provides added durability or reflective properties when needed.

Q: What are the main application areas for XLPE rolls?

A: XLPE rolls are widely used for thermal insulation (HVAC ducts, underlay for flooring), sound insulation, automotive interiors, packaging, sports padding, and more. Their versatility and range of thicknesses make them suitable for diverse industrial, commercial, and residential uses.

Q: When should flame retardant XLPE rolls be selected?

A: Flame retardant XLPE rolls should be chosen for environments where adherence to fire safety standards such as UL94 is required, including construction, automotive, and electronics applications. The flame retardant feature enhances safety for critical installations.

Q: Where can customized sizes and finishes of XLPE rolls be procured?

A: Custom sizes, thicknesses, colors, and surface treatments-including lamination with aluminum foil or custom films-can often be ordered directly from the supplier or trader, tailored to specific project requirements.

Q: What is the benefit of using XLPE rolls in moisture-prone environments?

A: Thanks to their closed-cell structure and very low water absorption (<0.02 g/cm3), XLPE rolls provide outstanding moisture resistance, making them ideal for applications such as HVAC insulation and underlay flooring in damp environments.

Q: How do XLPE rolls contribute to eco-friendly initiatives?

A: XLPE rolls are eco-friendly, being both recyclable and ROHS compliant. They are manufactured without CFCs or toxic substances, aligning with green building standards and responsible material sourcing.
